The Klee v2 analog sequencer (part 1)

I started building to most complex module so far for my modular: the Klee v2 analogue sequencer designed by Scott Stites. It is a very different sequencer compared to other designs. You can use it as a “normal” sequencer but it can do much more…

The complexity of the build lies within the massive amount of wiring that needs to be done to connect all LED’s, switches and potentiometers to the PCB’s.

I ordered the PCB’s from electro-music.com. The front panel, designed by Thomas White, came from The Bride Chamber.

The picture below shows the front panel with all controls. Klee v2 frontpanel with controls

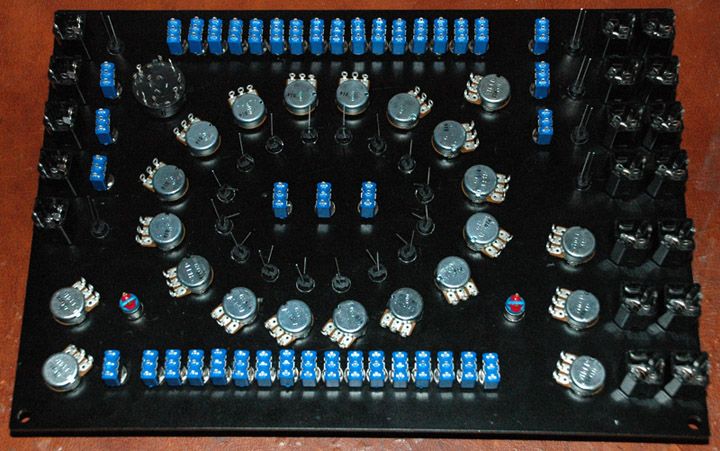

Here the front panel as seen from the back.Klee v2 frontpanel back

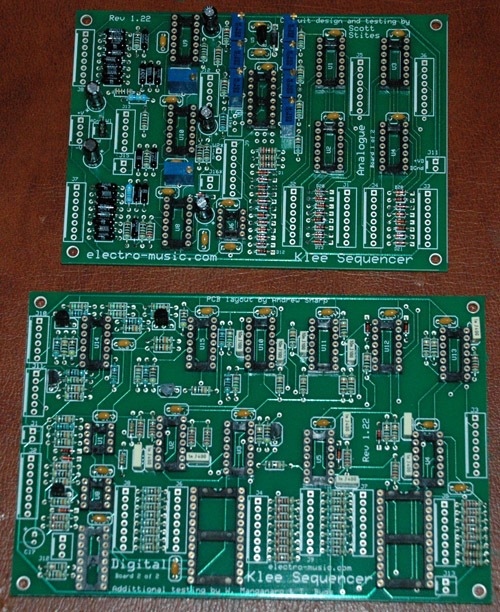

And these are the two PCB’s for digital logic and analogue circuitry.Klee v2 PCB's

Let the fun begin…
