The Klee v2 analog sequencer (part 2)

Before I could proceed with building the Klee I had to make some custom Aluminum brackets to mount the two PCB’s on. Below you can see a picture.

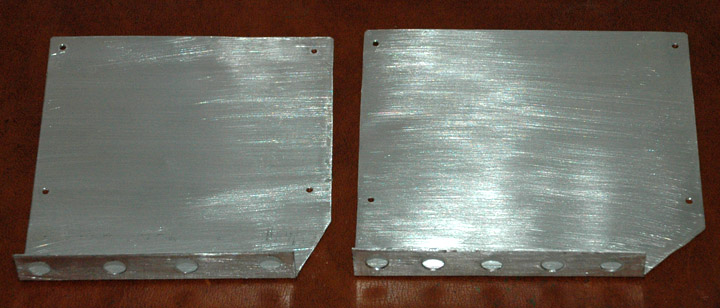

Aluminum custom brackets

I went for two separate brackets for the analog and digital PCB. After an evening of soldering the backside of the Klee looks like this.

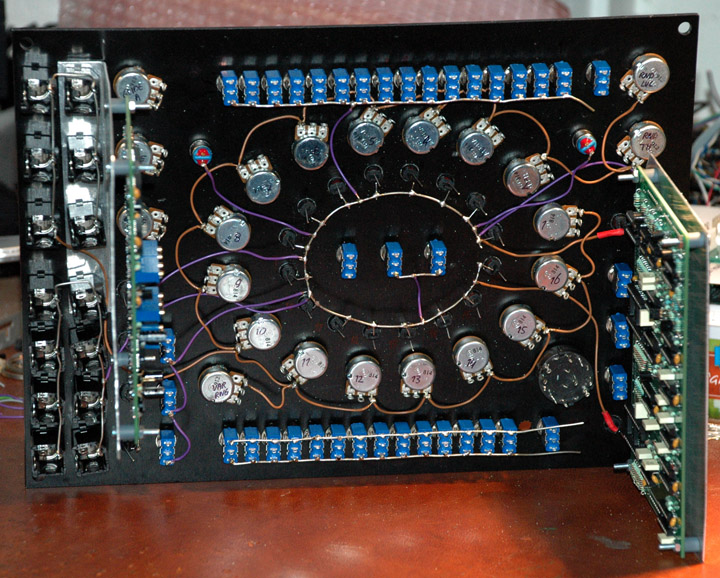

Klee sequencer: custom brackets in place


Comments

3 responses to “The Klee v2 analog sequencer (part 2)”

  1. hi, this is wonderful and fantastic project, and now I am determined to build a Klee v2 analog sequencer. I would love to still find PCBs for sale, you know where I can still find them?

    Thanks.

    1. It’s a great project indeed. It will take some time but the effort is worth it!
      I bought the PCBs from http://electro-music.com/catalog/ but I don’t think they sell them anymore. Ask there if they have any left.

      A front panel can be bought from Bridechamber (http://www.bridechamber.com/Klee.html) but it looks like they are also out of stock.

      1. Ok Andrew. I’ll try to find them, if not possible, I have to put the hand in the dough and draw in CAD.

        And as you said it’s worth the effort.

        Best regards
