The Klee v2 analog sequencer (part 3)

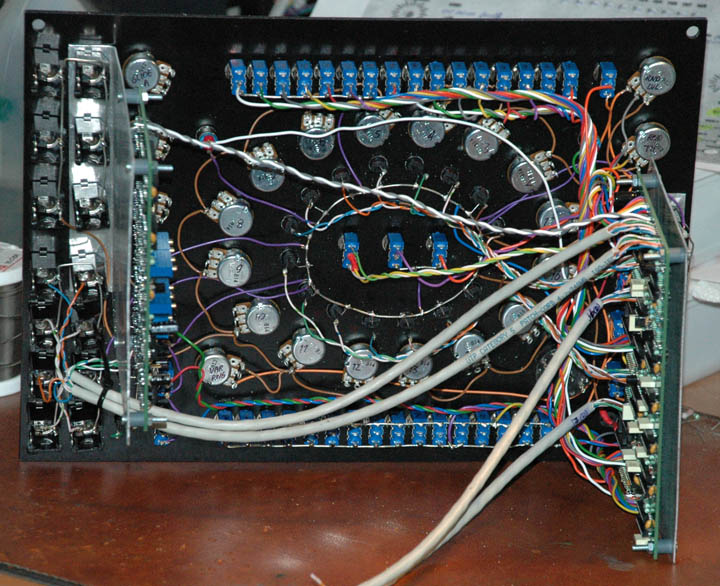

I finished wiring the digital PCB of the Klee sequencer today. The loose wires you see in the picture below are the interconnect wires which will connect the digital PCB and the analog PCB together.

Klee sequencer: Digital PCB wiring completed

This is a lot of work, but it’s fun. I must restrain myself though from working on it when it’s late. I discovered several wiring errors a couple of days ago when I checked my work of the previous evening. You have to keep paying attention with these amounts of wires to connect!
